Control

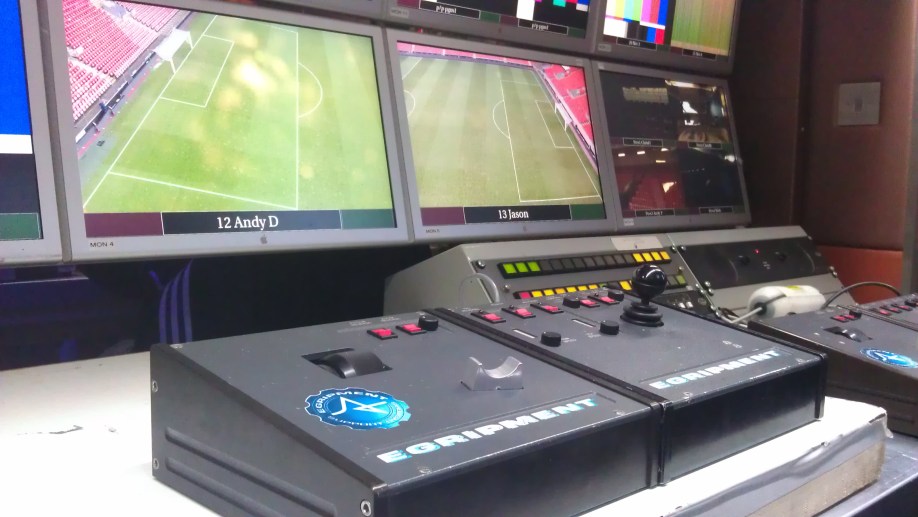

Consoles for use with the 12 way analogue control system

Analogue Control

I am able to offer a remote camera control system to suit your requirements. The standard system used runs over a 12 way cable and allows the remote head to be operated with precision and finesse. Up to 1000M of 12 way cable can be used for a single system providing plenty of options for the easiest cable route and allowing remote cameras to be rigged in very remote places.









Digital Control System

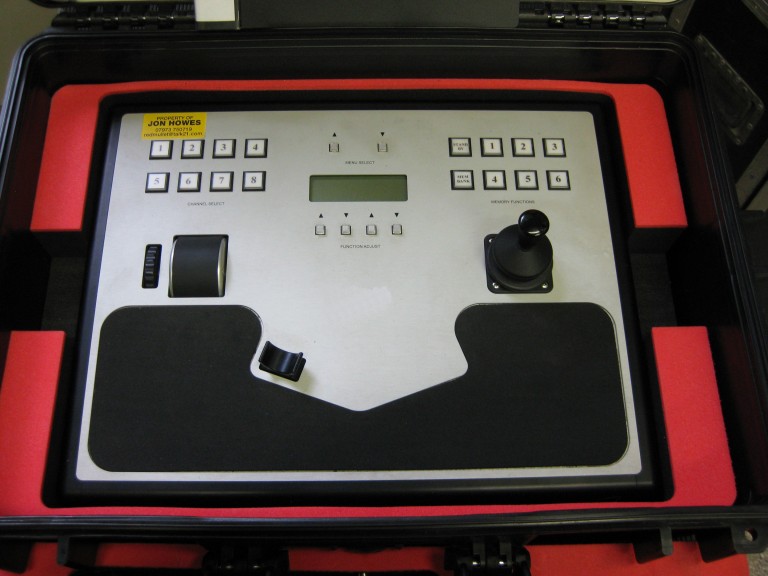

Digital Control

I also stock the very latest in digital control technology. This system sends digital control data, modulated onto an audible carrier frequency. This means the control signal can be treated as a standard balanced audio signal which can greatly aid the routing of the signal. The system was designed to work in situations where there is over 1KM between the control position and the remote head. The signal can be sent over a wide variety of cable types such as standard mic cable, fibre optic, twisted pair, CAT5 and also RF systems.

Using this console the operator is able to control up to six remote heads.




Pan Bar System

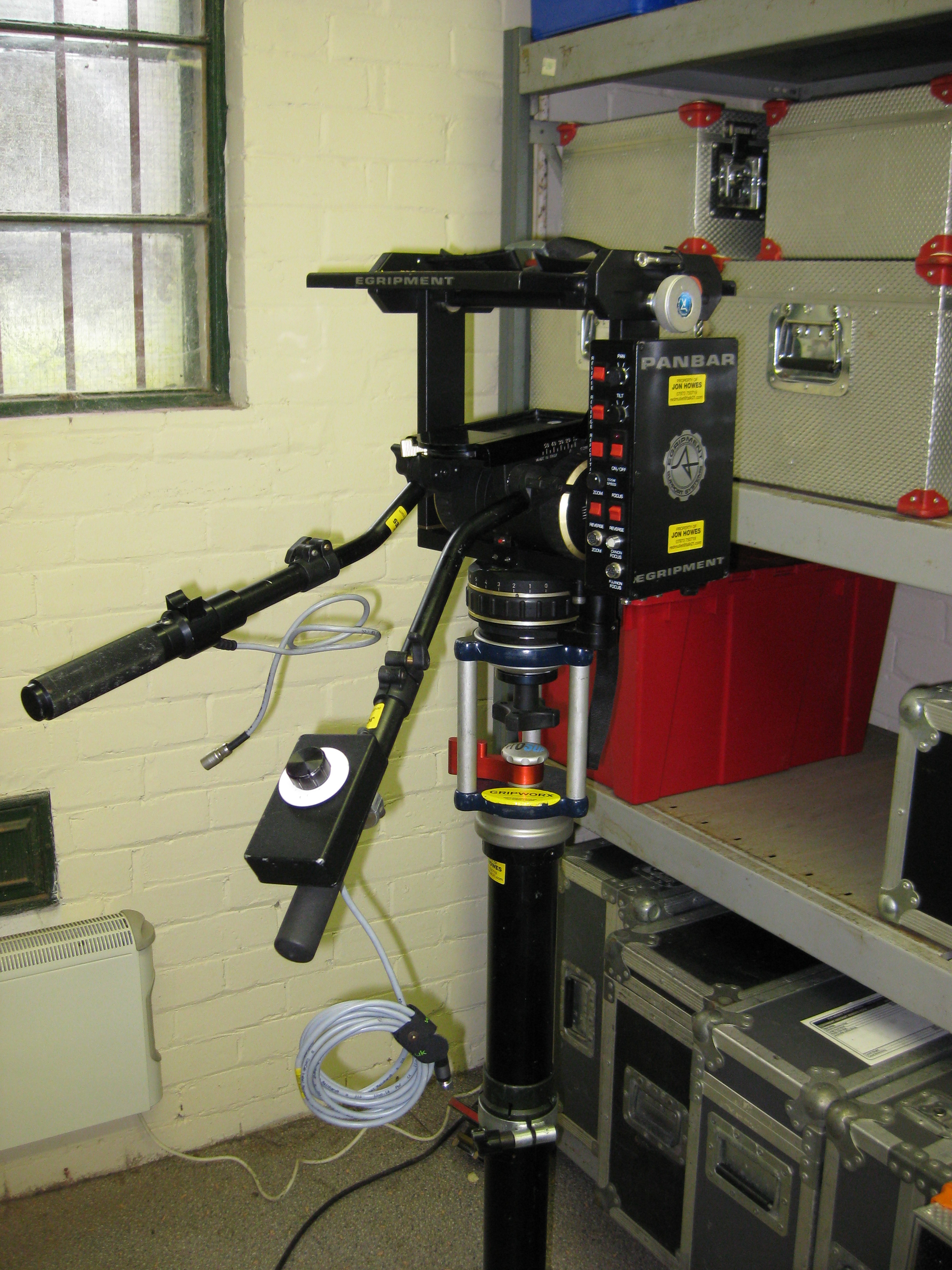

Egripment panbar control system

The Egripment Pan Bar System offers the operator the natural feel of true manual operation but with the flexibility and precision of a remote head. The system can be used with the HotShot, HotHead and Scanner remote head systems. It is possible to change the gearing of the pan bar controls from a 1:1 setup up to a 4:1 setup, where a 90 degree pan on the controls would result in a 360 degree pan on the remote head.
